Molex Micro-Lock Plus Wire-to-Board Connector System
Molex Micro-Lock Plus Wire-to-Board Connectors are suited for compact applications and provide electrical and mechanical reliability in high-temperature designs that meet the standards of automotive and other industry requirements. The Micro-Lock Plus connectors have an operating temperature range of -40ºC to +105ºC and can withstand harsh environments. These connectors feature robust metal solder tabs that enable tight PCB retention as well as strain relief to solder junctions.
1.25mm Pitch Micro-Lock Plus Connectors
Molex 1.25mm Pitch Micro-Lock Plus Wire-to-Board Connectors are dependable, high-temperature resistant, and compactly built systems with a positive lock that ensures secure mating retentions. The 1.25mm pitch connector systems offer a maximum voltage of 50V and a maximum current of 3.6A/Single (2 circuit/AWG 26) and 2.4A/Dual (8 circuit/AWG 26). These connectors are typically used in numerous automotive applications and are perfect for small, high-temperature applications such as drones, gaming machines, laser printers, and power tools.
1.25mm Pitch Micro-Lock Plus with Potting Capability
Molex 1.25mm Pitch Micro-Lock Plus with Potting Capability connectors are one of the smallest wire-to-board "potting" connectors, featuring 3.00mm (single-row) and 6.00mm (dual-row) high potting material to protect contact and latch areas in environmentally sensitive applications. The Potting Capability connectors feature Tin-Bismuth terminals which avoid whiskering for a clean and uninterrupted signal and support terminal durability and reliability. These connectors withstand an operating temperature of up to 105 ̊C and provide a wide positive latch with an audible click, contact assurance, and secure mating retention.
2.00mm Pitch Micro-Lock Plus Connectors
Molex 2.00mm Pitch Micro-Lock Plus Wire-to-Board Connectors are dependable, high-temperature resistant, and compactly built systems with a positive lock that ensures secure mating retentions. The 2.00mm pitch connector systems offer a maximum voltage of 250V and a maximum current of 4.7A (2 circuit/AWG 22). These connectors are typically used in automotive, consumer industries, and industrial automation.
1.25mm & 2.00mm Micro-Lock Plus Cable Assemblies
Molex 1.25mm and 2.00mm Micro-Lock Plus Off-the-Shelf (OTS) Cable Assemblies come in a variety of cable lengths and a compact connector to support both prototyping and global production. The OTS cable assemblies feature pin-to-pin mapping from the receptacle to the PCB header that provides ready-to-use, plug-and-play connections. These cables are typically used in commercial aviation, commercial vehicles, consumer industries, industrial automation, and medical equipment.

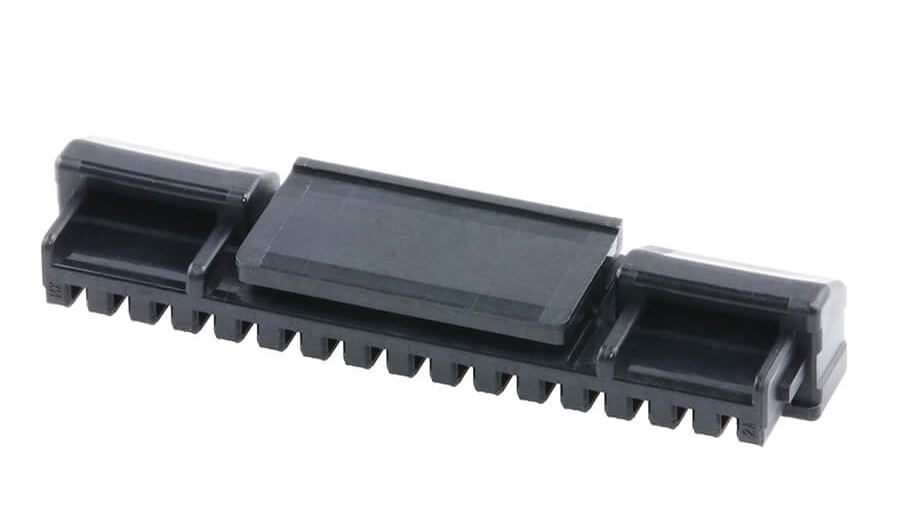

1.50mm Pitch Micro-Lock Plus Connectors
Molex Micro-Lock Plus 1.50mm Pitch Wire-to-Board Connectors are compact interconnect systems with a positive-lock mechanism that ensures secure mating retention and resistance to cable pull and mechanical stress. The 1.50mm pitch connector systems support a maximum voltage of 125VACrms/DC and provide a minimum insulation resistance of 1000MΩ with durability up to 30 mating cycles. These connectors are typically used in automotive electronics, appliances, HVAC systems, and industrial automation equipment.
