C&K KMR7 Tactile Switches
C&K Components KMR7 Microminiature Tactile Switches for SMT come with top-actuated, watertight sealed IP67 rated, along with gullwing type terminals. The KMR7 offers an excellent tactile feel greater than 25% for an actuation force of 2N to 4N with a bounce time of ≤3ms. These tactile switches can operate in the temperature range of -40˚C to +85˚C for silver-plated and -40˚C to 125˚C for gold-plated switches. This microminiature top-actuated tactile switch features ultra-low current capabilities with a minimum current of 1mA and a maximum current of 50mA. Typical applications include consumer products, instrumentation, computer products, and industrial systems.
Features
- Excellent tactile feel
- Gullwing type of terminal for SMT
- Lead-free reflow soldering process in accordance with IEC 61760-1
- No ground pin
- Standard and long-life versions
- Ultra-low current capabilities
- Watertight IP67
Applications
- Aerospace
- Automotive
- Computer keyboards
- Consumer
- Industrial
- Medical
- Telecom/Network equipment
- Selection and power switches
Technical Specifications
| Parameter | Value | |
|---|---|---|
| Silver | Gold | |
| Bounce Time | ≤ 3ms | |
| Contact Resistance | ≤ 100mΩ | |
| Dielectric Strength | ≥ 250Vrms | |
| Insulation Resistance |
≥ 1GΩ | |
| Maximum Current | 50mA | 10mA |
| Maximum Power | 1VA | 0.2VA |
| Maximum Voltage | 32VDC | 32VDC |
| Operating Temperature Range | -40˚C to 85˚C | -40˚C to 125˚C |

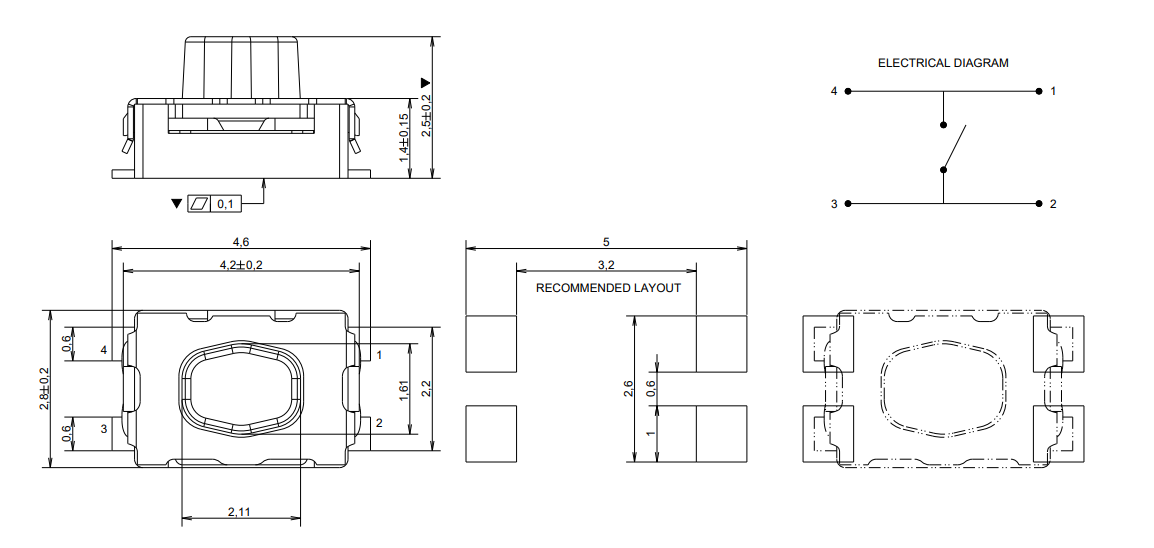

KMR7 Microminiature Tactile Switches Dimension Diagram
NG- No Ground Pin (dimensions are in mm)
