Littelfuse Q2L SIDACtor Protection Thyristors

Littelfuse Q2L Series SIDACtor Protection Thyristors are low-capacitance devices that are designed to protect high-density broadband equipment from damaging overvoltage transients. The Q2L thyristors come in C-rated and A/B-rated variants. Q2L thyristors operate at a junction temperature (T_J) ranging from -40°C to +150°C and a storage temperature (Ts) ranging from -65°C to +150°C. These thyristors are ideal for inverter circuits, logic circuits, light dimmers, and rectifiers.

The Q2L Series A/B Rated SIDACtor Protection Thyristors provide a low-profile surface solution that enables broadband equipment to comply with global regulatory standards while limiting the impact on broadband signals and board space. These A/B-rated thyristors come in a 3x3 QFN package.

The Q2L Series C Rated SIDACtor Protection Thyristors offer a low profile, chip scale surface mount solution that enables broadband equipment to comply with global regulatory standards while limiting the impact on broadband signals and board space. These C-rated thyristors come in a 3.3x3.3 QFN package.

Features

• Does not degrade surge capability after multiple surge events within the limit
• Fails short circuit when surged more than ratings
• Low capacitance
• Low on-state voltage
• Low profile
• Low voltage overshoot
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin (Sn) (IPC/JEDEC J-STD-609A.01)
• Recognized to UL 497B as an isolated loop circuit protector
• RoHS-compliant and halogen-free
• Small footprint

Applications

• Circuits:
  • Inverter circuits
  • Logic circuits
  • Power-switching circuits
  • Relay-replacement circuits
• Light dimmers
• Motor drive speed controllers
• Phase-fired controllers
• Rectifiers
• Strobe lights

Technical Specifications

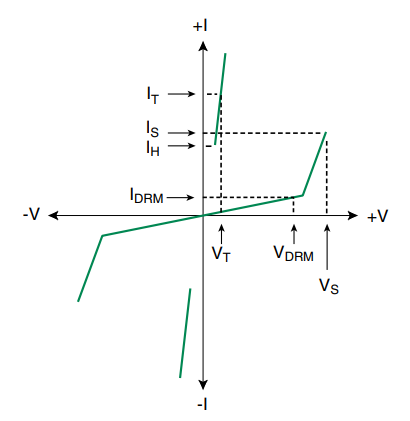

Q2L Series SIDACtor Protection Thyristors VI Characteristics
