Littelfuse 885 Series Nano2 Surface Mount Fuses
Littelfuse 885 Series Nano2 Surface Mount Fuses feature a heat-resistant plastic body with a V-0 to UL 94 flammability rating. These surface mount fuses are high voltage-rated devices with high interrupting current ratings at 450VDC/500VDC and 350VAC. The 885 fuses have a high pulse resistance, and a nominal cold resistance range from 0.0119Ω to 0.078Ω. The 885 series Nano2 fuses operate at a temperature range from -40°C to +105°C and a current rating range from 1A to 5A. These components are ideal for various applications, including battery management systems, electric vehicles, high-voltage DC-DC converters, and sense lines.
Features
- A heat-resistant plastic body that meets flammability rating of V-0 to UL 94
- Halogen-free
- High pulse resistance
- Highly reliable solderless fuse
- Lead-free
- Low voltage drop
- RoHS compliant
- UL/CSA/ NMX 248-1 and UL/CSA/ NMX 248-14 recognized
Applications
- Battery management systems
- High-voltage DC-DC converters
- Li-ion battery packs
- Sense lines
Technical Specifications
| Parameters | Values |
|---|---|
| Current rating range | 1A to 5A |
| Maximum voltage rating | 450VDC, 500VDC, and 350VAC |
| Nominal cold resistance range | 0.0119Ω to 0.078Ω |
| Nominal voltage drop range | 79mV to 105mV |
| Operating temperature range | -40°C to +105°C |

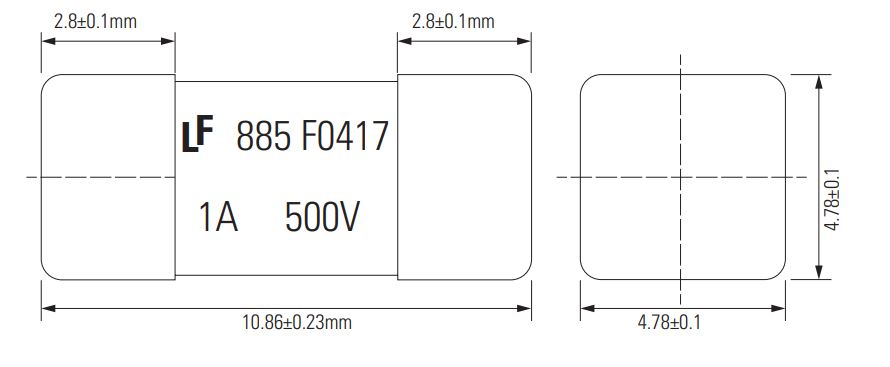

885 Series Nano2 Surface Mount Fuses Product Dimensions
All dimensions in mm
