YAGEO Nexensos M222 Temperature Sensors
YAGEO Nexensos M222 Series Temperature Sensors are Pt-RTDs that have a wide temperature range and feature long-term stability with high precision. The M222 temperature sensors are available in various configurations to offer accurate temperature readings with minimal drift and provide high resistance to vibration and shock. These sensors operate within a temperature range from -70°C to +500°C and a temperature coefficient of 3850ppm/K. Typical applications include automotive, home appliances, HVAC industries, industrial process monitoring, medical devices, and pyrolytic ovens.
Features
- Designed for large-scale applications
- High shock and vibration resistance
- Ideal for welding, brazing, and crimping applications
- Offers accuracy and interchangeability
- Outstanding long-term stability with minimal drift
Applications
- Automotive
- Home appliances
- HVAC industries
- Industrial process monitoring
- Medical devices
- Pyrolytic ovens
Technical Specifications
| Parameters | Values |
|---|---|
| Insulation Resistance | >100MΩ at 20°C >2MΩ at 500°C |
| Maximum operating temperature range | -70°C to +500°C |
| Measuring Current | Pt100Ω: 0.3mA to 1mA Pt500Ω: 0.1mA to 0.7mA Pt1000Ω: 0.1mA to 0.3mA |
| Self-Heating | 0.4K/mW at 0°C |
| Temperature Coefficient | 3850ppm/K |
| Tensile Strength | ≥9N |

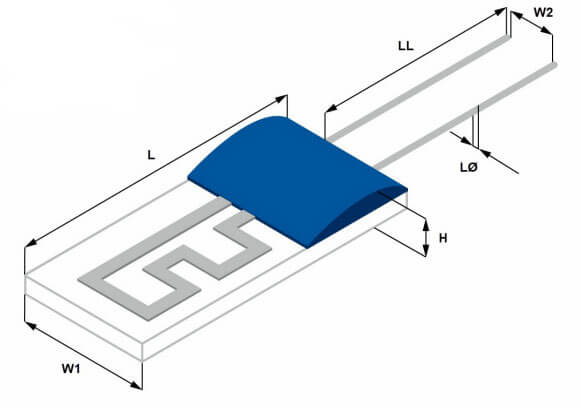

M222 Series Temperature Sensors Dimensions
Dimensions and tolerances in mm
Measurement Information
L: 2.3 +0.2 -0.1
W1: 2.10 ±0.2
H: 0.9 ±0.3 -0.2
LL: 10 ±1.0
LØ: 0.2 ±0.02
W2: 0.8 ±0.1
