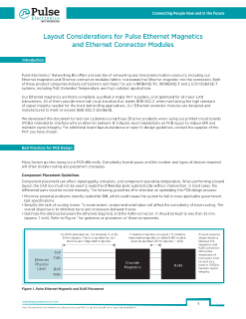

Layout Considerations for Pulse Ethernet Magnetics and Connector Modules

Pulse Electronics’ Networking BU offers a broad line of networking and telecommunication products, including our Ethernet magnetics and Ethernet connector modules (which incorporate the Ethernet magnetic into the connector). Both of these product categories include components optimized for use in 100BASE-TX, 1000BASE-T and 2.5/5/10GBASE-T systems, including PoE, Extended Temperature, and high isolation applications.
