Phoenix Contact TMC7 and TMC8 Thermal-Magnetic Overcurrent Protection
Phoenix Contact TMC7 and TMC8 Series Thermal-Magnetic Overcurrent Protectors feature 1-pole, 2-pole, and 3-pole thermal-magnetic Miniature Circuit Breakers (MCBs) available in industry standard B, C, and D-trip curves for DIN rail-mounted applications. These thermal-magnetic overcurrent protectors come with toggle actuation and a visual status indication for overcurrent protection of circuits and loads. The TMC7 and TMC8 series overcurrent protectors operate within the temperature of -35°C to +70°C with a nominal current range of up to 63A. Phoenix Contact TMC7 and TMC8 series circuit breakers with a mechanical life of 20000 cycles are suitable for the protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, and peripheral equipment.
Features
- Available in 3 pole versions enabling the configuration for all applications
- A wide range of currents from 1A to 63A versions for optimizing system reliability
- A single product line with triple curves (B, C, D) for all load types
- Multiple accessories provide added functionality and system status information
- Secure screw terminations and toggle for switching behavior
- Single part number with both AC and DC dual ratings, reducing inventory requirements
- Snap-action mechanism eliminates contact welding and reduces contact wear
- Trip-free design for increased safety against closing during an overcurrent event
- UL 508 listed cuttable busbar for flexible, easy bridging of power and accessories
- Visual status indication to easily identify circuit status
Applications
- Automotive manufacturing
- Automation and process control
- Chemical, oil, and gas
- Lighting equipment
- Pharmaceutical and food
- Renewable energy
- Telecom and datacom
Technical Specifications
| Parameters | Values |
|---|---|
| Degree of protection | IP20 |
| Nominal current range | 1A to 63A |
| Operating temperature range | -35°C to + 70°C |
| Rated voltage range | 120V AC to 277V AC |
| 60V DC to 125V DC |
TMC7 and TMC8 Thermal-Magnetic Overcurrent Protection Dimensional Diagram

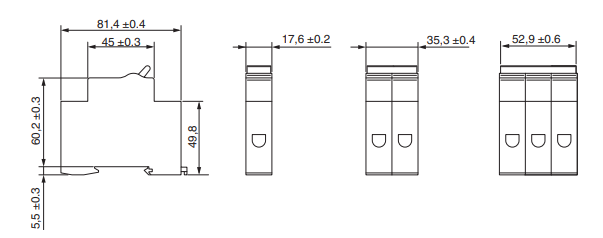

TMC7 series dimensions in mm

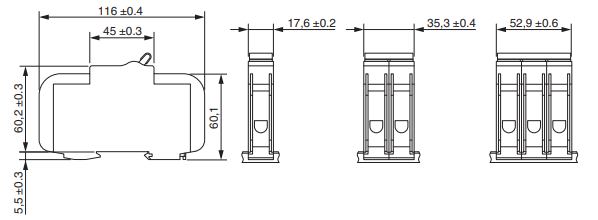

TMC8 series dimensions in mm
