Omron 2SMPP MEMS Gauge Pressure Sensors

OMRON 2SMPP MEMS Gauge Pressure Sensors are exceptionally compact, measuring 6.1mm × 4.7mm × 8.2mm, and provide low power consumption of 0.2mW. 2SMPP MEMS pressure sensors include good temperature dependency and better electrical properties over capacitive-type pressure sensors. RoHS-certified 2SMPP pressure sensors feature a drive current of 100μA DC. Typical applications include home appliances, air movement control, level indicators, leak detection, and pressure controllers.

Features

Better electrical properties over capacitive-type pressure sensors
Decent temperature dependency
Exceptionally compact
Low-temperature impact
Minimal power consumption
RoHS-certified

Applications

Air movement control
Home appliance
Leak detection
Level indicators
Medical equipment
Pressure controller

Technical Specifications

Parameters	Values
Parameters	2SMPP-02	2SMPP-03
Absolute maximum current	130μA DC	200µA DC
Dimensions	6.1mm × 4.7mm × 8.2mm
Drive current	100μA DC
Operating temperature range	0°C to 50°C	-20°C to +100°C
Power consumption	0.2mW
Pressure range	0kPa to 37kPa	-50kPa to +50kPa

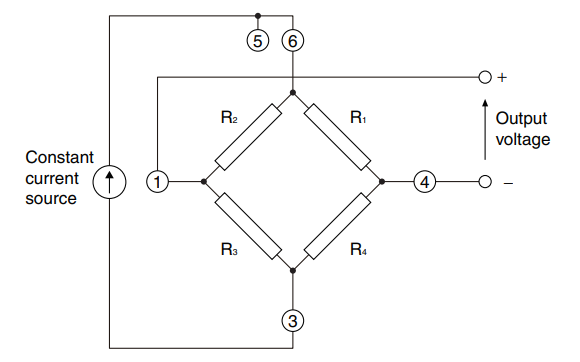

2SMPP MEMS Gauge Pressure Sensors Connection Diagram

OMRON 2SMPP MEMS Gauge Pressure Sensors Connection Diagram
