Dialight 657 Watertight LED Panel Mount Indicators
Dialight 657 Single, Bi-, and Tri-Color Series Watertight LED Panel Mount Indicators (PMIs) feature a high-impact, UV-stabilized lens material, and are available with domed, flat, or right-angle lens options. The 657 series LED panel mount indicators are designed with highly durable watertight housing. These LED indicators operate from -35°C to +65°C (single color PMIs) and -40°C to +85°C (Bi- and Tri-color PMIs) temperature range. Typical applications include electrical control panels, buses and transit vehicle dashboards, wastewater treatment controls, and status indications on industrial equipment.
Features
- Certifications and ratings:
- IP67
- NEMA 4X
- RoHS compliant
- Polycarbonate (UL 94V-0) housing and lens material
- White nickel-plated brass nut
- White nickel-plated bronze lock washer
Applications
- Aircraft and military vehicles dashboards
- Agricultural and construction equipment dashboards
- Buses and transit vehicles dashboards
- Electrical control panels
- Status indication on industrial equipment
- Wastewater treatment controls
Specifications
| Parameters | Value | |
|---|---|---|
| Voltage Options | 5VDC to 30VDC | |
| Operating Temperature Range | Single color PMIs | -35°C to +65°C |
| Bi and Tri-color PMIs | -40°C to +85°C | |
| Storage Temperature range | -40°C to +100°C | |
| Wire Leads | 6" | |
| Mounting Torque | 15in-lbs | |
| Maximum Panel Thickness | 0.350" | |
| Mounting Hole Size | 0.687" | |
657 Single Color Series PMIs Dimensions

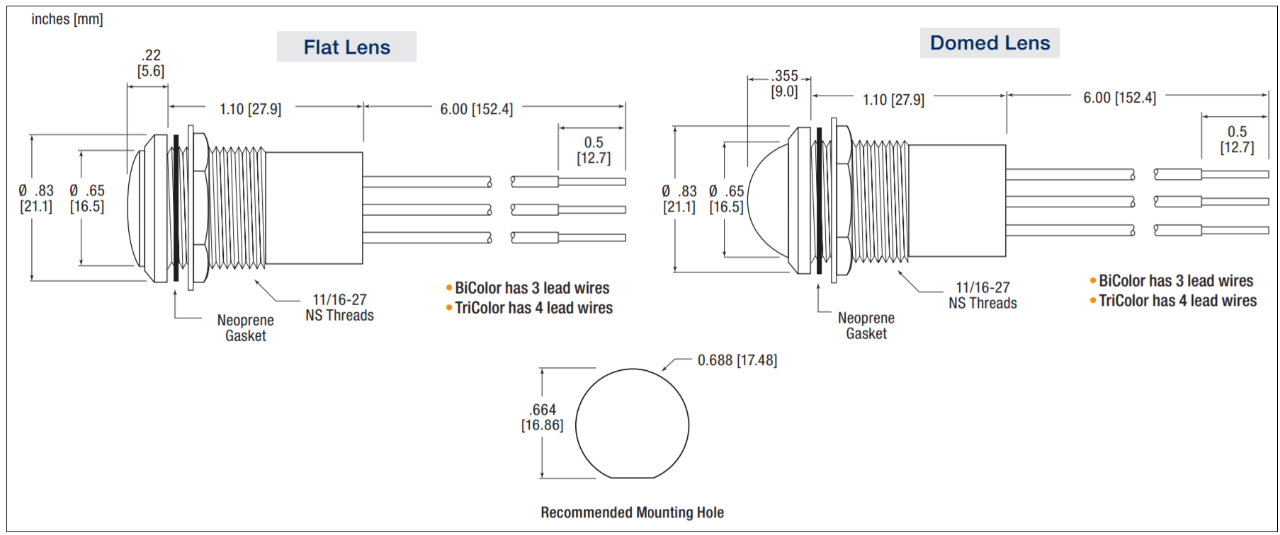

657 Bi- and Tri-Color Series PMIs Dimensions
