Abracon APR Series Automotive Qualified GPS Antennas
Abracon APR Series Automotive Qualified GPS Antennas target 4G/LTE/1561/1575/1602MHz/GPS/IRIDIUM/GNSS frequency bands that are geared towards automotive applications. The series includes durable, compact antennas in patch or chip form. Abracon APR antennas are AEC-Q200 compliant, offer a wide operating temperature range from -40°C to +105°C, and have an impedance of 50Ω. Some of the common applications include broadband cellular connectivity, consumer electronics, logistics, and wireless modules.
Features
- Complies with IATF 16949 certification
- Low return loss
- Multiband GNSS patch with GPS/GLONASS/BeiDou/Galileo:
- APRA1804G3Z
- APRA2504G3Z
- Multiband GNSS patch with GPS L1+L5/GLONASS/BeiDou/Galileo:
- APRE2508GCZ
- Multiband GPS + Iridium patch:
- APRA2504F00Z
- RHCP polarization
Applications
- Broadband cellular connectivity
- Consumer electronics
- Geofencing
- IoT (Internet of Things)
- Consumer
- Industrial
- Infrastructure
- Logistics
- Navigation
- Networking and telecommunications
- Remote monitoring
- Surveying and mapping systems
- Video and surveillance
- Wireless modules
Technical Specifications
| Part Number | Peak gain |
Impedance |
Maximum frequency |
Minimum frequency |
Operating temperature range |
Dimensions |
Resources |
|---|---|---|---|---|---|---|---|
| APRA1804G3Z | 4.7dBi | 50Ω | 1.602GHz | 1.561098GHz | -40°C to +105°C | 18mm x 18mm x 4mm | Datasheet |
| APRA2504G3Z | 4.2dBi | 50Ω | 1.607GHz | 1.559052GHz | -40°C to +105°C | 25.1mm x 25.1mm x 4mm | Datasheet |
| APRA2504F00Z | 4.5dBi | 50Ω | 1.625GHz | 1.574397GHz | -40°C to +105°C | 25.1mm x 25.1mm x 4mm | Datasheet |
| APRE2508GCZ | 4.3dBi | 50Ω | 1.607GHz | 1.16445GHz | -40°C to +105°C | 25.1mm x 25.1mm x 8mm | Datasheet |
Product Dimensions
APRA1804G3Z Dimensions - Unit mm
APRA2504G3Z & APRA2504F00Z Dimensions - Unit mm

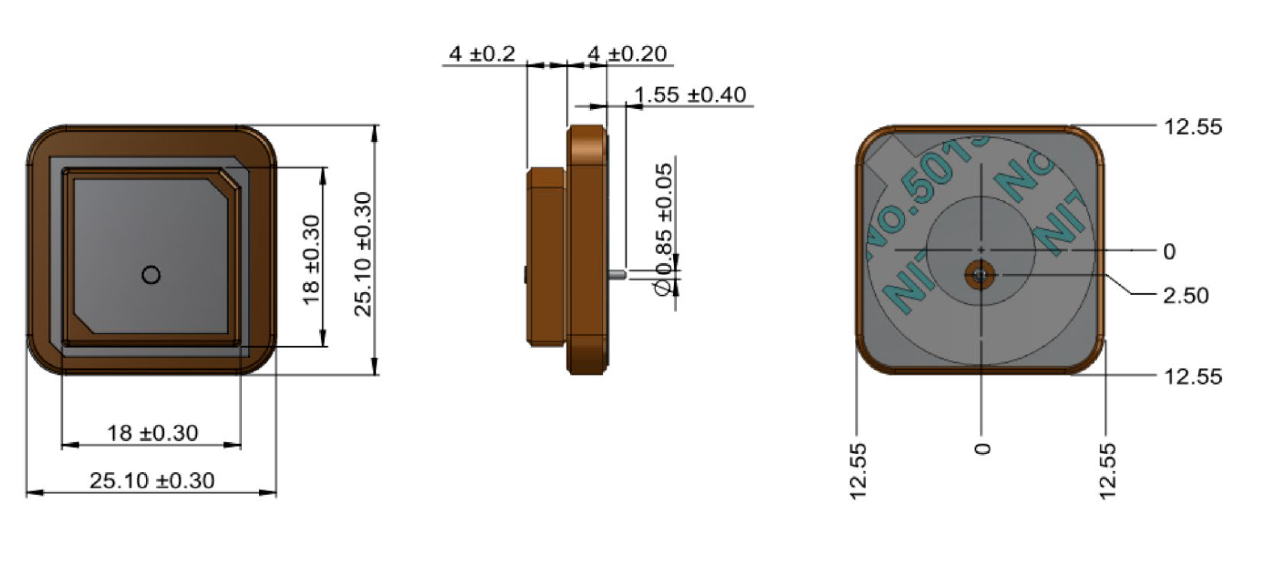

APRE2508GCZ Dimensions - Unit mm
