TE Connectivity CERTI-CRIMP Portable Tools

TE Connectivity CERTI-CRIMP Portable Tools are top-of-the-line and premium hand-operated tools for crimping a broad array of terminals, contacts, and special wiring devices. These portable tools are designed to exact specifications to produce consistent and high-quality terminations. The potential service life of over 50,000 cycles is possible, depending on operator care. These tools come in seven basic styles of CERTI-CRIMP portable tools, the choice depends on the product being applied and/or your preferred method of application. The seven basic styles include CERTI-CRIMP II Straight Action Hand Tool (SAHT), Double Action Hand Tool (DAHT), T-HEAD hand tool (T-HEAD), TETRA-CRIMP hand tool (TETRA), Platform die hand tool (UFHT), Heavy Head Hand Tool (HHHT), and C Head straight action hand tool.

The CERTI-CRIMP Portable Tools feature a reliable ratchet control system. The ratchet will not release until the handles are fully closed and the dies bottomed which helps eliminate partial crimps. The crimp designs incorporate percent-of-compression that optimizes electrical and mechanical performance. These CERTI-CRIMP portable tools are well suited for low production runs, prototype work, and repairs with almost any application requiring consistent and highly-reliable terminations.

Features

• CERTI-CRIMP II Straight Action Hand Tools (SAHT):
  • Approximate weight 1.3lb [0.59kg]
  • Contact locator and support
  • Dies close in a straight line
  • Ejects crimped contact
  • Insulation crimp adjustment (4 positions)
  • Wire stop
• Double Action Hand Tools (DAHT):
  • Approximate weight 1.2lb [0.54kg]
  • Dies travel in an arc-like path
  • Insulation adjustment on tools for FASTON, MATE-N-LOK, PIDG, and PLASTI-GRIP terminals
  • Locator on tools for FASTON, MATE-N-LOK, PIDG, and PLASTI-GRIP terminals
• T-HEAD Hand Tools (T-HEAD):
  • Adjust insulation crimp with a 4-position screw
  • Approximate weight 1.3lb [0.59kg]
  • Color-coded
  • Dies close in a straight line
  • Locator
  • Quick take-up on the handle for holding terminal or splice in place
• TETRA-CRIMP Hand Tools (TETRA):
  • Approximate weight 1.4lb [0.64kg]
  • Dies travel in an arc-like path
  • Multiple color-coded crimping cavities
  • Ratchet control release
  • Terminal locator and wire stop
• Heavy Head Hand Tools (HHHT):

  • Approximate weight 2.1lb [0.95kg]

  • Dies close in a straight line
  • Insulation adjustment on tools for AMPLI-BOND, PIDG, and PLASTI-GRIP terminals
  • Locator and wire stop when applicable
  • Terminates most large coaxial cable and heavy-gage wire
• C Head Straight Action Hand Tools (CHEAD):
  • Approximate weight 1.9lb [0.86kg]
  • Dies are interchangeable
  • Dies close in a straight line
  • Locators and other applicable features included with dies

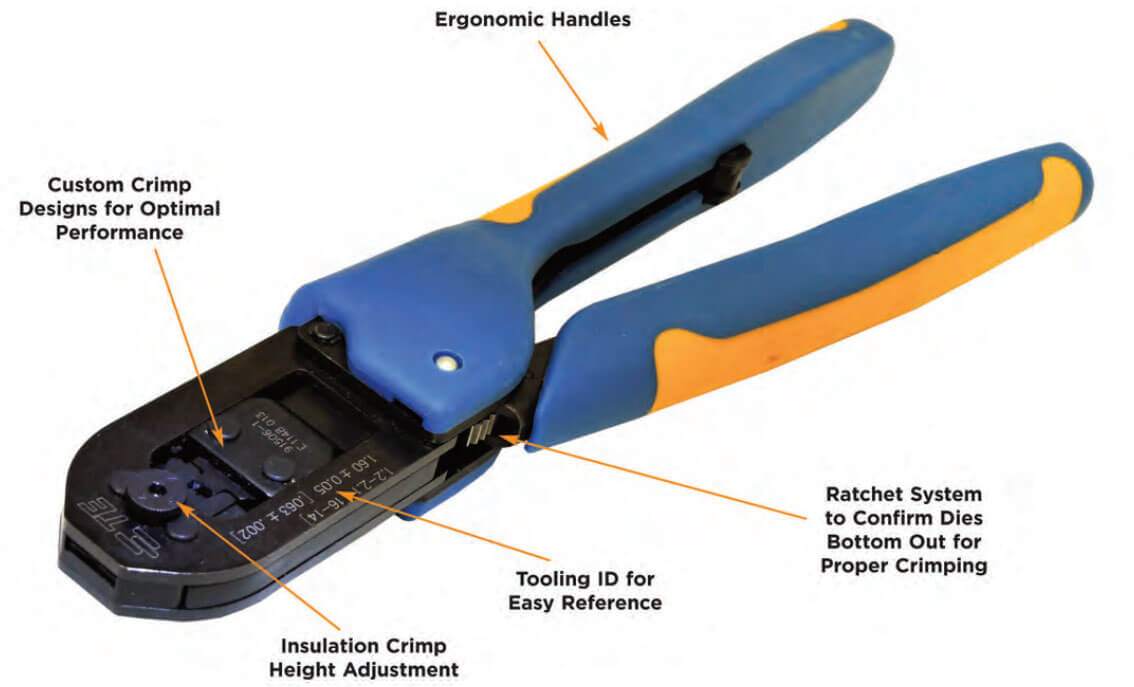

Crimping Tool Characteristics
