Spectrum Control Dual Line Common Mode EMI Filters
Spectrum Control Dual Line Common Mode EMI Filters feature a robust differential mode noise filtering capability covering the range from 30KHz to 10MHz. These filters are engineered to meet the stringent MIL-PRF-15733 standards, ensuring reliable performance, and can achieve the desired attenuation for both types of noise in a single filter, thus eliminating the need for two separate single-line filters. The Dual Line Common Mode EMI filters have a current range from 1A to 10A with a maximum DCR range from 0.008Ω to 0.08Ω. Typical applications include telecommunications, defense, industrial control panels, medical equipment, and measuring/testing.
Features
- Compact, space-saving design
- Differential mode noise filtering
- EMI filtering of common-mode noise
- Improved insertion loss performance
- MIL-PRF-15733 compliant
- Reduced physical footprint
- Reliability improvement
Applications
- Defense
- Industrial control panels
- Measuring and testing instruments
- Medical equipment
- Telecommunication equipment
Technical Specifications
| Parameters | Values | |
|---|---|---|
| Current Rating Range | 1A to 10A | |
| Voltage Rating Range | DC | 100V to 200V |
| AC | 130V | |
| Maximum DCR Range | 0.008Ω to 0.08Ω | |
| Minimum Insertion Loss Range at 1GHz | 60dB to 65dB | |

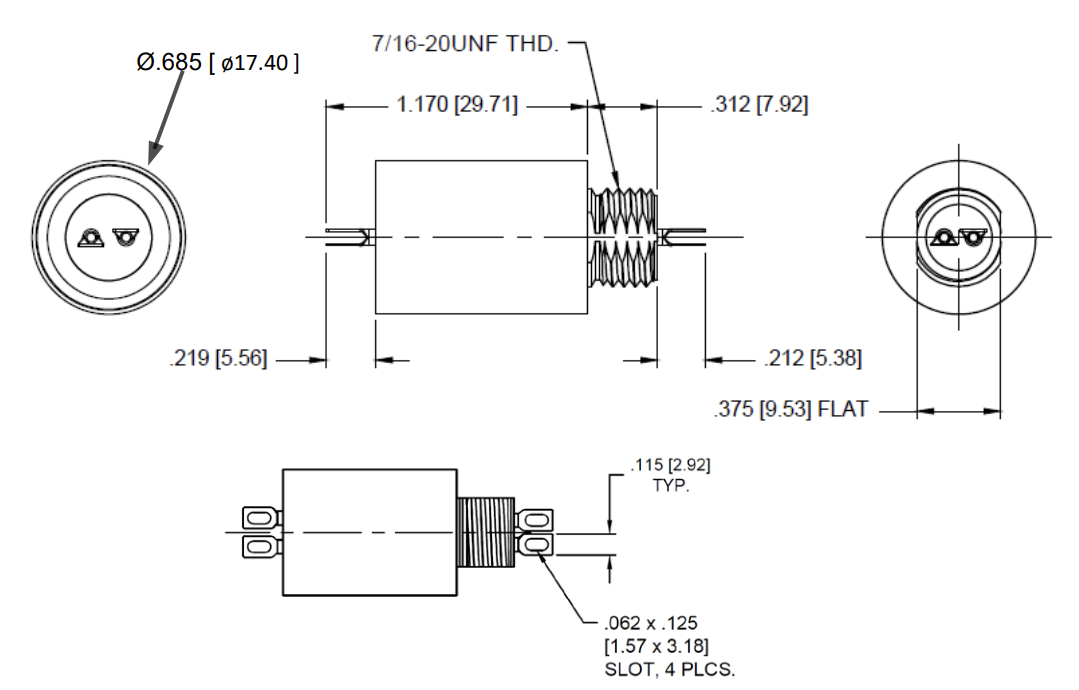

Dual Line Common Mode EMI Filters Dimension Diagram
Video
This TTI Tech Specs video for Spectrum Control Dual Line Common Mode EMI Filters showcases how they feature a robust differential mode noise filtering capability covering the range from 30KHz to 10MHz.
See video transcript below
Video Transcript
My wife won’t let me forget that I bought an off-brand robot vacuum cleaner. Every time it moves from its mating dock, it interrupts her show due to electronic interference. I tell her the company should be using a reliable noise filter like the dual-line common-mode EMI filters from Spectrum Control. These filters can effectively attenuate both common and differential mode noise, including line-to-ground and line-to-line capacitance. And the dual line design reduces weight and footprint by 50% when compared to using two separate filters.
The hermetically sealed and compact design provides safe and extended performance while staying compliant with MIL-PRF-15733 standards in the 30KHz to 10KHz range for defense, industrial control panels, telecommunication, and test and measurement applications. Operational at 50Vdc to 200Vdc or 130Vac at 400Hz, the dual-line common-mode EMI filters are compatible with both regular- and battery-powered devices.
