Panasonic ERA Thin Film Chip Resistors
Panasonic ERA Series Thin Film Chip Resistors offer a wide range of options designed for challenging environments and consist of several series. These resistors feature a soft terminal design with gold inner terminals and ensure stability in high temperatures and humidity. The ERA series thin film chip resistors withstand heat shock, corrosion, and ESD while operating reliably in temperatures from -55°C to +155°C. These resistors provide high accuracy, low resistance tolerance, and anti-sulfurated properties. The thin film resistors are AEC-Q200 qualified and comply with standards like IEC 60115-8, JIS C 5201-8, JEITA RC-2133C, and RoHS/REACH. The ERA series finds use in applications like home appliances, commercial equipment, radars, and aircraft infotainment.
Features
- Built using a thin film structure on a ceramic substrate
- Designed with a high power rating relative to their small size
- Features anti-ESD and anti-sulfuration properties
- High accuracy and high performance
- Meets IEC, JIS, and JEITA standards
- Offer high precision with tight resistance tolerances
- Offers High power and high reliability
- RoHS-compliant
- Small case sizes are available, including 0402, 0603, and 0805
Applications
- Aircraft infotainment
- Automotive ECU
- AV products
- BMS
- Commercial aircraft
- Commercial equipment
- Computers
- Cruise liners
- Divider circuit
- Drones
- Gateway
- Home appliances
- Radar (for submarine)
- Satellites
- Security/surveillance systems
- Smartphones
- Test and measurement
- User antenna
Technical Specifications
| Parameters | Values |
|---|---|
| Operating Temperature Range | -55°C to +155°C |
| Resistance Tolerance | ±0.05% and ±0.1% |
| Temperature Coefficient of Resistance | ±10 x10^-6/K |

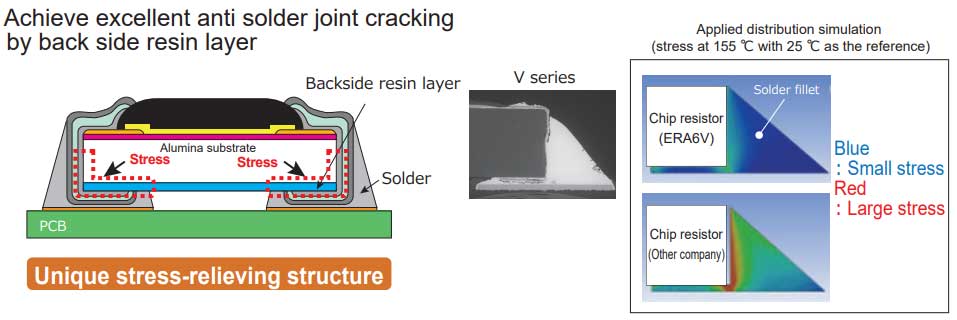

Diagram
