Panasonic CS, CT, and CX Series Aluminum Electrolytic Capacitors

Panasonic CS, CT, and CX Series Aluminum Electrolytic Capacitors are SP-Cap conductive polymer capacitors that support voltages up to 35Vdc. These capacitors use a conductive polymer and maintain performance under high temperatures and mechanical stress. The series offers low-profile package heights of 1.1mm for CS, 1.4mm for CT, and 1.9mm for CX capacitors. The CS, CT, and CX aluminum electrolytic capacitors are suitable for reflow soldering processes and meet RoHS compliance requirements.

Features

Halogen free
High-temperature reflow soldering capability
RoHS compliant
Specialized electrode materials for higher withstand voltage
Use of conductive polymer for stable performance under stress

Applications

Audio/visual equipment
Communications infrastructure
Desktop computers
Drones
Industrial equipment
Laptops
Servers

Technical Specifications

Parameters		Values
Capacitance Tolerance		±20% (120Hz/+20°C)
Dissipation Factor		≤0.06 (120Hz/+20°C)
Maximum Rated Voltage		35Vdc
Operating Temperature Range		-55°C to +105°C
Rated Capacitance Range	CS Series	10µF to 120µF
	CT Series	15µF to 180µF
	CX Series	15µF to 560µF

Manage Cookie Settings

Panasonic CS, CT, and CX Series Aluminum Electrolytic Capacitors

Features

Applications

Technical Specifications

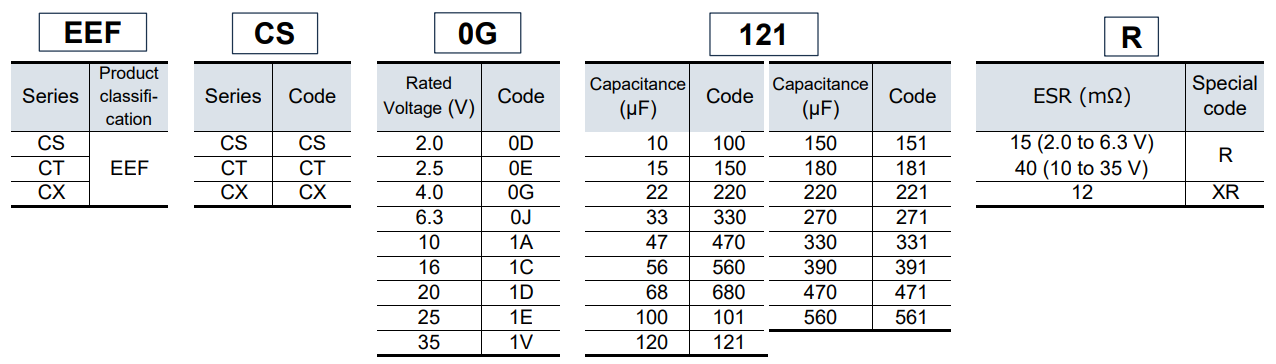

CS, CT, and CX Series Aluminum Electrolytic Capacitors Part Number System
