Osram SFH 47278AS A01 High Power Infrared LEDs
OSRAM SFH 47278AS A01 High Power Infrared LEDs feature a clear silicone lens and operate at a centroid wavelength of 940nm. These LEDs are AEC-Q102 qualified and are optimized for high current pulse operation. The SFH 47278AS A01 high power infrared LEDs offer a low thermal resistance of 6.6K/W and robust ESD protection of 8kV. These LEDs operate within a temperature range from -40°C to +125°C. Typical applications include driver and occupant monitoring, gesture sensing, and child presence detection.
Features
- AEC-Q102 qualified
- Clear silicone lens for improved light transmission
- Double stack emitter design
- High power output
- Low thermal resistance
- Robust ESD protection
Applications
- Automotive safety systems
- Child presence detection
- Driver monitoring systems
- Gesture recognition
- In-cabin sensing solutions
- Occupant detection
- Security and surveillance systems
- Smart home devices
Technical Specifications
| Parameters | Values |
|---|---|
| Typical Centroid Wavelength | 940nm |
| Maximum Thermal Resistance | 6.6K/W |
| ESD Withstand Voltage | 8kV |
| Operating Temperature Range | -40°C to +125°C |
| Forward Current Range | 100mA to 1500mA |
| Maximum Power Consumption | 5.2W |

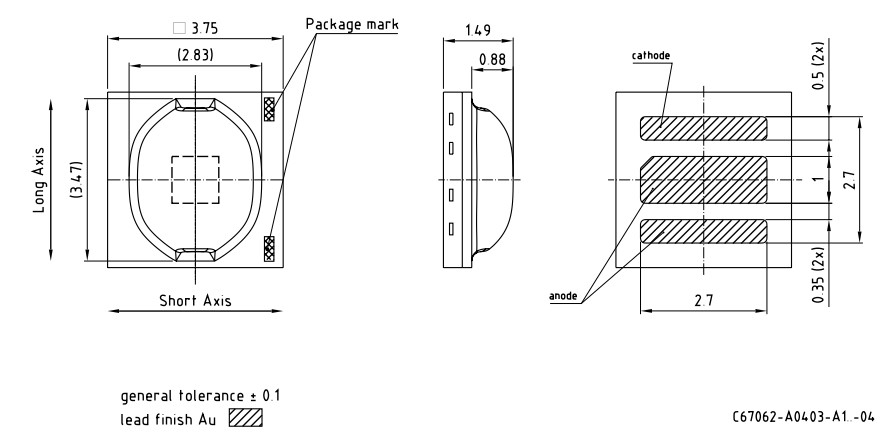

SFH 47278AS A01 Infrared LEDs Dimensional Drawing
