Murata Power Solutions UWS-Q12 Isolated DC-DC Converters
Murata Power Solutions UWS-Q12 Isolated DC-DC Converters use a DOSA-compatible sixteenth-brick format and support output trimming, remote on/off control, remote sensing, and pre-bias startup protection. The UWS-Q12 converters operate from a wide 9Vdc to 36Vdc input range and are available with regulated single outputs of 3.3V, 5V, 12V, 15V, or 24V. These devices achieve up to 91% efficiency, operate over -40°C to +85°C temperature range with derating, and require no minimum load for stable operation. Protection functions include undervoltage shutdown, overtemperature shutdown, output overvoltage protection, current limiting with hiccup auto-restart, and continuous short-circuit protection. Typical applications include data centers, network repeaters, and server farms.
Features
- DOSA-compatible sixteenth-brick format
- High efficiency up to 91%
- No-load stable operation
- Open-frame package
- Output voltage trimming capability
- Pre-bias startup protection
- Remote on/off control
- Single regulated outputs
Applications
- Data centers
- Datacom equipment
- Mobile applications
- Network repeaters
- Server farms
- Telecom equipment
- Wireless communication towers
Technical Specifications
| Parameters | Values |
|---|---|
| Input Voltage Range | 9Vdc to 36Vdc |
| Maximum Output Power | 54W |
| Minimum Isolation Resistance | 10MΩ |
| Operating Temperature Range | -40°C to +85°C (with derating) |
| Output Voltages | 3.3V, 5V, 12V, 15V, and 24V |
| Switching Frequency Range | 225kHz to 325kHz |

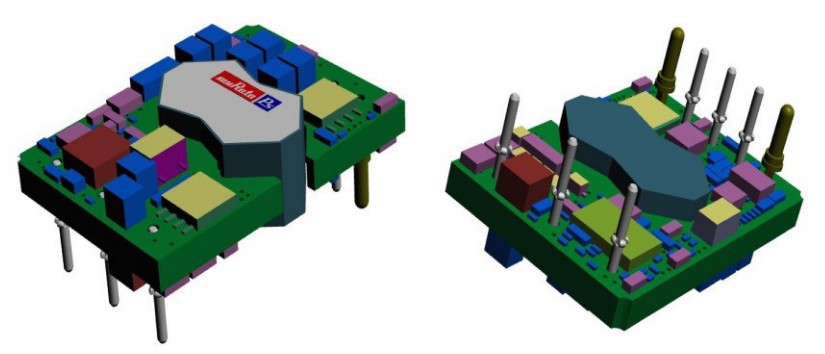

UWS-Q12 Isolated DC-DC Converters Open-Frame Through Hole Package
