Littelfuse 24 Series Continuous Duty Solenoid Relays
Littelfuse 24 Series Continuous Duty Solenoid Relays minimize arcing and contact oxidation and maintain high performance. The 24 series solenoid relays offer universal use with part numbers available to handle loads up to 200A. These continuous-duty solenoid relays come in PVC-coated options for a more environmentally sealed product. The 24 series coated solenoids withstand moisture and dust to IP66 and have an operating temperature range from -40°C to +85°C.
Features
- Available with PVC coated exterior or potted coil interiors for harsh environments or vibration resistance
- Bracket mounting holes 5/16" x 19/32” (7.9mm x 15.1mm) on 2 13/64” centers (56.0mm)
- Large (power circuit) battery studs; copper 5/16” - 24 thread
- Plated steel housing - hexnuts and washers included
- SPST Normally open contacts
- Small (control circuit) coil studs; steel 10 - 32 thread
Applications
- Automotive:
- Air conditioning control
- Anti-vibration engine mountings
- In-car entertainment release mechanisms
- Petrol cap locking
- Security systems
- Industries
- Locking
- Medical
- Railway
Technical Specifications
| Parameters | Values |
|---|---|
| Voltage rating range | 6VDC to 36VDC |
| Maximum continuous current range | 65A to 200A |
| Operating temperature range | -40°C to +85°C |
| Battery terminals | 5/16" to 24" |
| Coil studs | 10" to 32" |

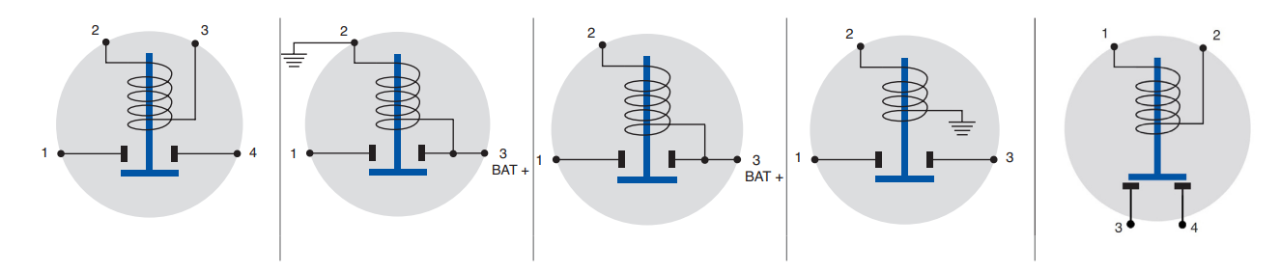

Electrical Schematic
Littelfuse 24 Series Continuous Duty Solenoid Relays Electrical Schematic
