KOA Speer RK73H Series Thick Film Chip Resistors

KOA Speer RK73H Series Thick Film Chip Resistors deliver precise and stable performance, featuring tolerances of 0.5% and 1%. These resistors feature a durable metal glaze thick film construction, ensuring high heat and weather resistance. This versatile series offers a wide range of sizes, from 01005 up to 2512, including the 0201 resistor size and 0201 package dimensions, making them suitable for various applications where the size of a resistor or 0201 component size is critical. The RK73H series thick film resistors operate within a temperature range from -55°C to +155°C and meet RoHS standards with lead-free ends and AEC-Q200 approval. Typical applications include consumer electronics, industrial equipment, and telecommunications.

Features

• AEC-Q200 qualified
• Available in a wide range of sizes from 01005 to 2512
• High heat and weather resistance provided by metal glaze thick film
• High stability and reliability with a triple-layer electrode structure
• Lead-free and RoHS-compliant
• Small lightweight size
• Suitable for both flow and reflow soldering

Applications

• Automotive electronics
• Consumer electronics
• Industrial control systems
• Power management modules
• Telecommunications equipment

Technical Specifications

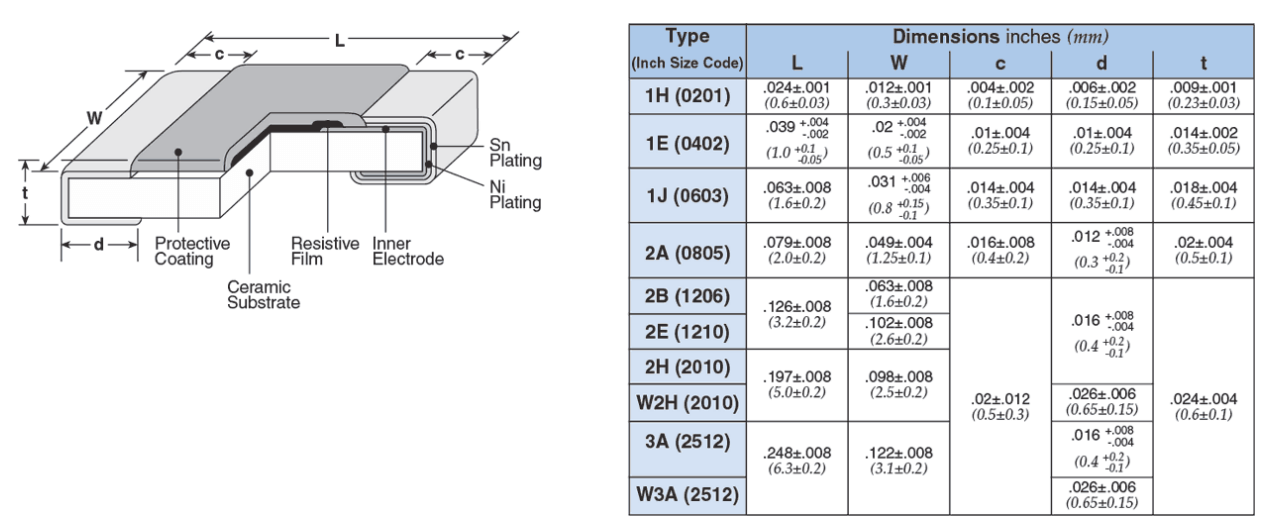

RK73H Thick Film Chip Resistors Dimensions & Construction
