KEMET HiQ CBR RF and Microwave MLCCs

KEMET HiQ CBR RF and Microwave Mount Multilayer Ceramic Capacitors (MLCCs) series feature a robust and exceptionally stable copper electrode Base Metal Electrode (BME) system that offers excellent low loss performance (high Q). Extremely low ESR and high self-resonance characteristics make HiQ CBR RF and microwave MLCCs well-suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required. The HiQ CBR RF and Microwave MLCCs exhibit no change in capacitance with respect to time and voltage and boast a negligible change in capacitance with reference to ambient temperature. These devices are suitable for many circuit applications that include RF power amplifiers, mixers, oscillators, low noise amplifiers, filter networks, antenna tuning, timing circuits, delay lines, and MRI imaging coils.

Features

• 100% pure matte tin-plated termination finish

• Base Metal Electrode (BME) dielectric system
• High SRF
• High thermal stability

• No capacitance changes for the applied rated DC voltage
• No piezoelectric noise
• Non-polar device, minimizing installation concerns
• Pb-free, RoHS, and REACH compliant
• Ultra-low ESR and High Q

Applications

• Bluetooth
• Bypass, coupling, filtering, impedance matching, and DC blocking
• Cellular base stations (4G and 5G)
• GPS
• RF Power Amplifier (PA) modules
• Satellite communications
• Telecommunication networks
• Wireless LAN

Technical Specifications

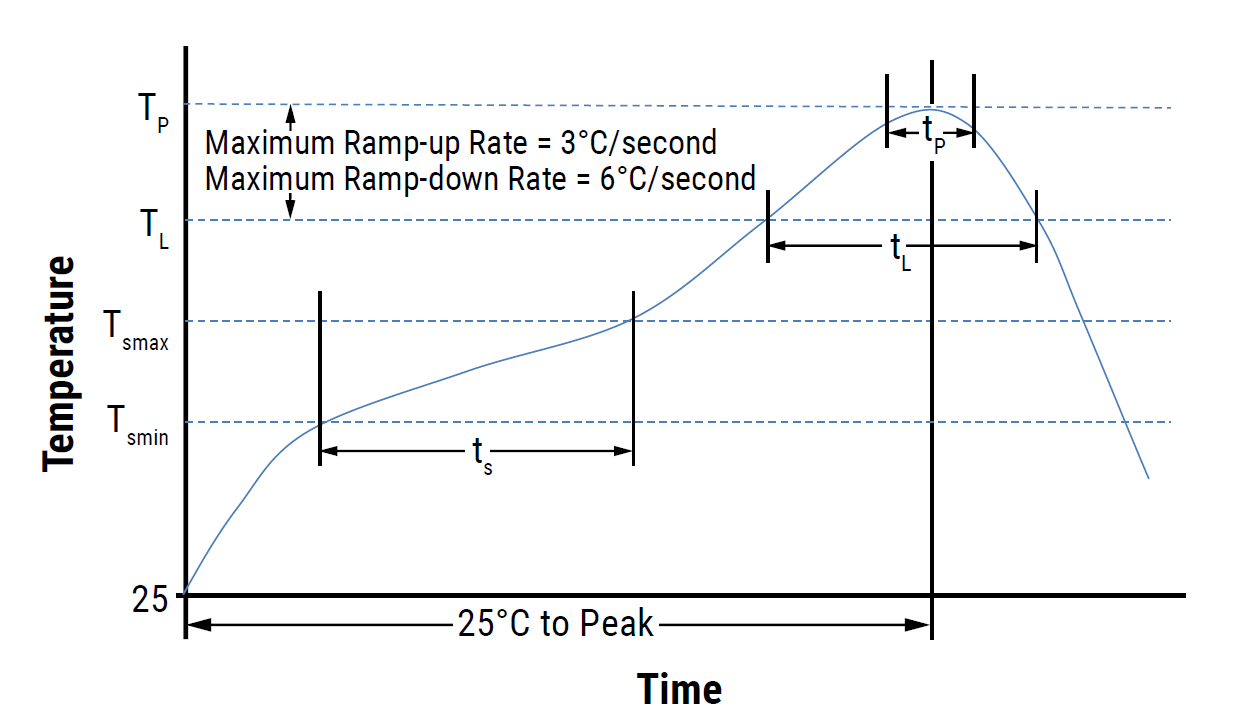

Recommended Reflow Soldering Profile
