Cannon Quadrax is a high-reliability, multi-signal contact system that is used to deliver high-speed data transfer rates up to 2.5 Gb/s. Available for use in a wide range of connectors, including Cannon's ARINC 600 and KJ 38999-style, the Quadrax Contact is designed as a Size 8 contact and contains four (4) matched impedance signal contacts within a shielded S body. High-speed data is transmitted through the signal contacts, which are terminated to signal wires within a shielded Quadrax cable.

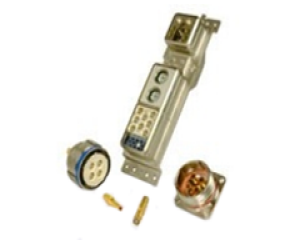

ITT Cannon Multi-Signal Quadrax Contact Systems
Features
- Data Transfer Rates Up to 2.5 Gb/S
- Designed for Gigabit Ethernet, Fiber Channel-150 Ohm and
- Exceptional EMI Compatibility, Maximum Data Transfer
- Versatile Design for A Wide Range of Connectors
- Rear-Release Crimp Pin or Socket Quadrax Contacts
- Front-Release PC Pin Quadrax Contacts
- Multi-Signal Quadrax Contact Systems
- Standard Tool to Insert/Extract Contacts
- Polarization and Wiring Keys Establish Proper Mating
- Termination
- Four signal pins with shield termination capability to yield a single Ethernet port
- Crimp version of the Quadrax Contact terminates twisted, shielded quad cable
Applications
- In-Flight Entertainment & Connectivity (IFEC)
- Avionics
- Aerospace Networks
- Cabin Systems
