Great Just Got Even Greater!

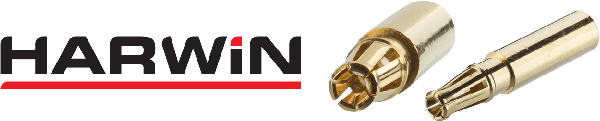

New 6-finger T-Contact for Harwin Datamate Connectors Maximizes Performance
Harwin’s new T-Contact has the size, weight, and power parameters of the high-reliability Datamate Connector. The 6-finger design of the T-Contact allows for 60% more contact area in the socket for greater carrying capacity contact. Each contact is gold-plated, ensuring reliable performance and durability is maintained while allowing 2x greater mating cycles, extending the lifespan of the connectors.
Datamate Contact Comparison |
||
Specifications |
T-Contacts |
Standard Contacts |
| Mechanical | ||
| Durability | 1000 Operations | 500 Operations |
| Insertion Force (Per Contact, Using Mating Pin) | 4.0N Max | 2.0N Max |
| Withdrawal Force (Per Contact, Using Mating Pin) | 0.5N Min | 0.2N Min |
| Contact Wipe | 2.0mm Min | 1.3mm Min |
| Current | ||
| Current - Individual at 85°C Ambient | 8.5A Max | 3.3A Max |
| Current - Individual at 25°C Ambient | 6.5A Max | 2.6A Max |
| Current - Current Through All Contacts at 25°C Ambient | 3.5A Max | 3.0A Max |
| Current - Current Through All Contacts at 85°C Ambient | 2.6A Max | 2.2A Max |
| Vibration | ||
| Vibration Severity | 40G - Duration 6 Hours | 10G - Duration 6 Hours |
| 20G - Duration 2 Hours | ||
| Shock Severity | 981m/s²(100G) | 981m/s²(100G) |
