EATON EXC14 EV Fuses

EATON EXC14 EV Fuses provide dependable circuit protection for electric vehicle and energy storage applications. These fuses help safeguard critical power systems from overcurrent conditions. The EXC14 EV fuses operate within a temperature range of -40°C to +125°C and a rated voltage of 800Vdc. These components have a rated current range from 50A to 80A and a minimum typical cold resistance of 1.05mΩ. Typical applications include electric vehicle power distribution, energy storage systems, inverters, and uninterruptible power supplies (UPS).

Features

CE compliant
Flexible terminal options
High breaking capacity
Reliable circuit protection
Robust design

Applications

Automotive and commercial on-board chargers
Electric vehicle power distribution
Energy storage systems
EV charging infrastructure
Inverters
Motor protection
Rectifiers
Uninterruptible Power Supplies (UPS)

Technical Specifications

Parameters	Values
Operating Temperature Range	-40°C to +125°C
Rated voltage	800Vdc
Rated Current Range	50A to 80A
Typical Cold Resistance Range	1.95mΩ to 1.05mΩ
Breaking capacity	800Vdc/50 kA

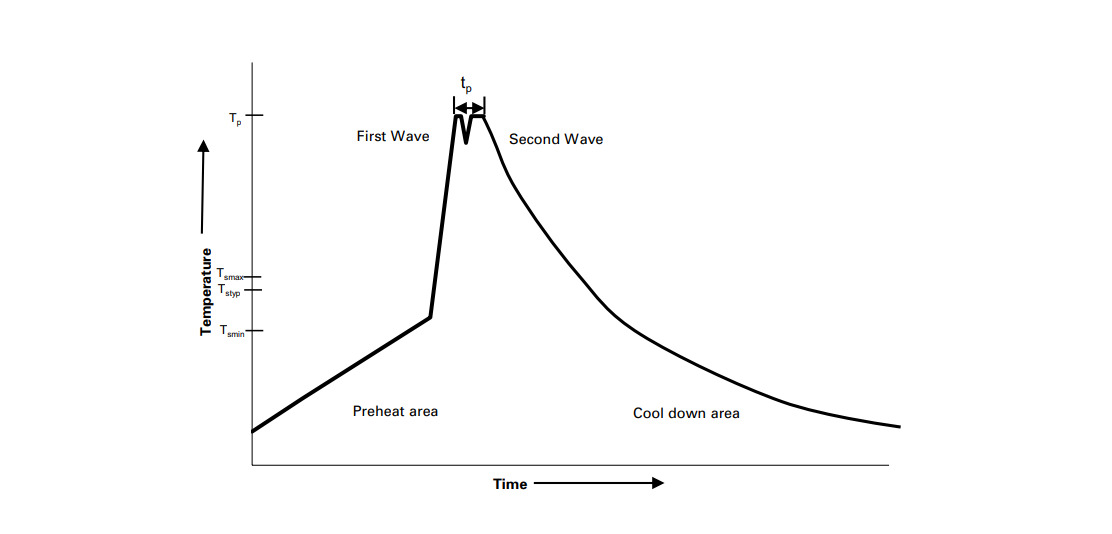

EXC14 EV Fuse Wave Solder Profile PCB Version
