Sensata Crydom PF Series Solid State Relays
Crydom PF Series Solid State Relays (SSRs) are SIP-style, PCB-mountable AC SSRs that feature back-to-back SCR outputs for heavy industrial loads and offer AC or DC control inputs. These relays are rated up to 25A (forced air) and support operating voltages from 12VAC to 660VAC. The PF series solid state relays operate within a temperature range from -30°C to +80°C and offer a maximum capacitance of 8pF. Typical applications include motor control, power control, and industrial automation.
Features
- Accepts both AC and DC control signals
- Certified to UL, CSA, and TUV safety standards
- Dual SCR output
- Single In-Line Package (SIP) style SSR
- Zero-voltage switching for resistive loads and instantaneous for inductive loads
Applications
- Environmental test equipment
- Industrial automation
- Motor control
- Power control
Technical Specifications
| Parameters | Values |
|---|---|
| Ambient operating temperature range | -30°C to +80°C |
| Maximum capacitance | 8pF |
| Maximum insulation resistance at 500VDC | 1000MΩ |
| Ambient storage temperature range | -30°C to +125°C |
| Dielectric strength | 4000VRMS |

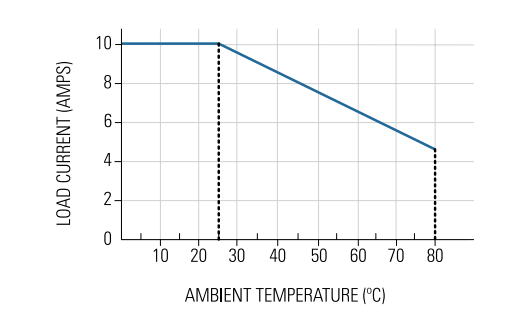

Crydom PF Solid State Relays Thermal Derate Graph
