Amphenol Canada MIL DTL 83513 Micro-D Series Connectors
Amphenol Canada MIL-DTL-83513 Micro-D Series Connectors encompass a wide range of series and are available in rectangular D, strip and custom card edge configurations, with contacts on .050" (1.27mm) centers. They require low mating and unmating force with terminations available in a wide range, including terminated to wire harness, solder cup, and vertical and right-angle PCB. Plastic and metal shell versions are available in a broad range of shell finishes.
Features
- Broad range of mounting hardware available
- Broad range of shell finishes
- Durability of 500 mating cycles
- Gold over nickel
- Low mating and unmating force required
- Low-profile versions available
- Plastic and metal shell versions available
- Signal and coax/power contacts available
Applications
- Space
Technical Specifications
| Parameters | Values |
|---|---|
| Maximum Contact Rating | 3A |
| Maximum Magnetic Permeability | 2.0µ |
| Dielectric Withstanding Voltage | 600VAC @ sea level 150VAC @ at 70,000 ft altitude |
| Minimum Insulation Resistance | 5000MΩ |
| Contact Resistance | 8mΩ |

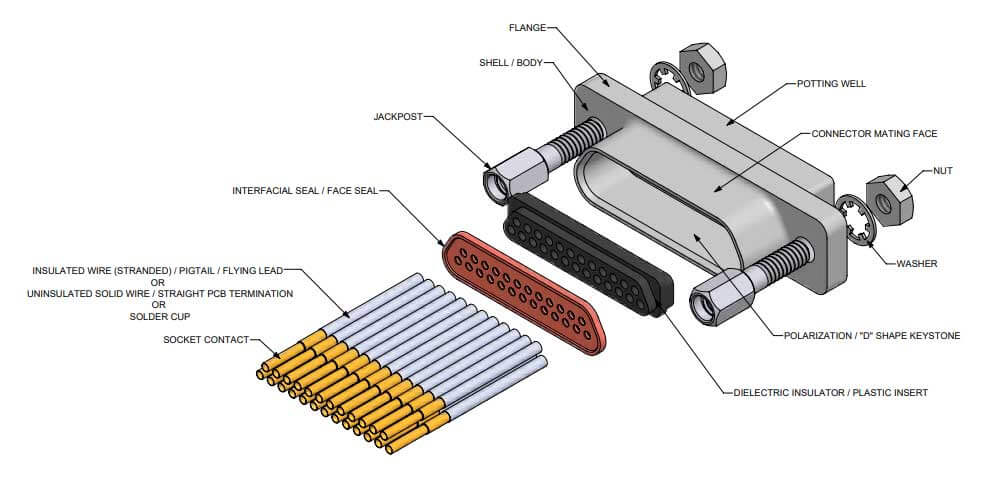

MIL DTL 83513 Micro-D Series Connectors Receptacle/Female/Socket Connector Detailed View

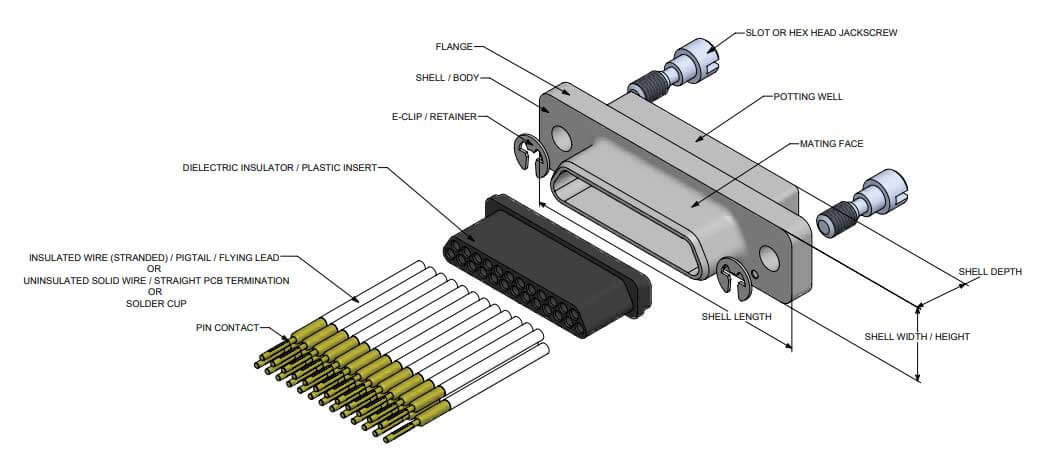

MIL DTL 83513 Micro-D Series Connectors Plug/Male/Pin Connector Detailed View
