TDK B78416 Transformers
TDK B78416 Transformers for Ultrasonic Sensors are EP-6 type transformers built with a ferrite core and 5 U-shaped terminals with AEC-Q200 compliance. The B78416 transformers feature resistance to reflow soldering heat in accordance with JEDEC J-STD-020E at a maximum temperature of +245°C for 10 seconds. These transformers are magnetically shielded for better interference suppression and operate within a temperature range from -40°C to +125°C, making them ideal for use in a wide variety of applications, including parking aids, industrial robots, drones, ultrasonic sensors, logistics robots, Automated Guided Vehicles (AGVs), and systems for fill-level measurement.
Features
- 5 U-shaped terminals
- AEC-Q200 qualified
- Compact 9mm x 7.6mm x 7.1mm dimensions
- EP 6 SMD type
- Ferrite core
- Magnetic shielding for better interference suppression
- Resistance to reflow soldering heat as per JEDEC J-STD-020E standards
- RoHS compatible
Applications
- AGVs
- Drones and logistics robots
- Industrial distance measuring
- Industrial robots
- Parking aids
- Systems for fill-level measurement
- Ultrasonic sensors
Technical Specifications
| Parameters | Values |
|---|---|
| Operating frequency range | 50kHz to 300kHz |
| Inductance range | 0.23mH ±8% to 5mH ±10% |
| Withstanding voltage | 200Vrms, 50Hz/1sec |
| Operating temperature range | -40°C to +125°C |

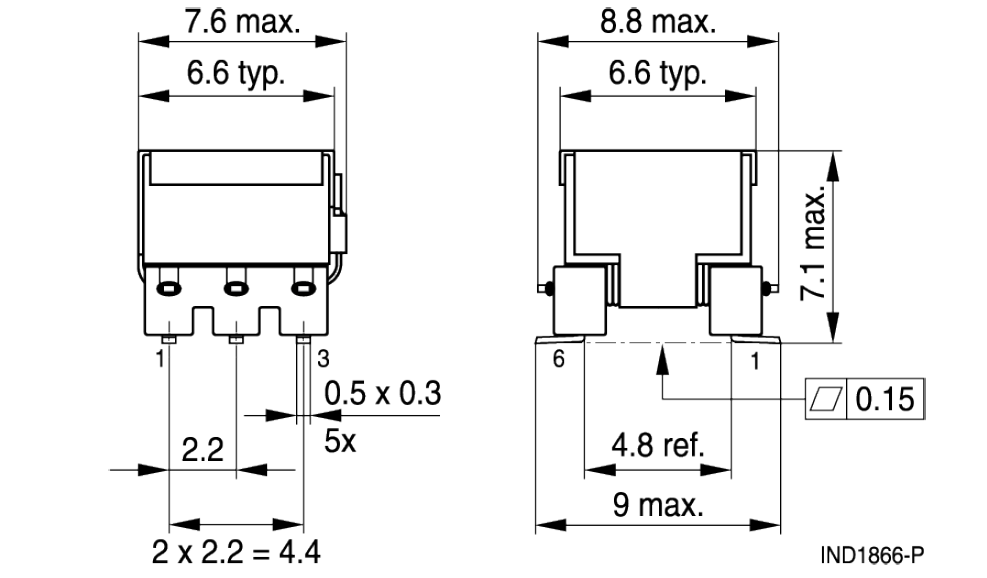

B78416 Transformers for Ultrasonic Sensors Product Dimensions
All dimensions in mm
