Amphenol Advanced Sensors Noise Immune NTC Type NKI Thermistors

Amphenol Advanced Sensors Noise Immune NTC Type NKI Thermistors are epoxy-coated thermistors that feature an integrated radio frequency decoupling function. These thermistors provide protection from Electro-Magnetic Interference (EMI) at the component level over a wide frequency range. The thermistors offer a fast time response and are EMC tested to GMW 3097/IS0 11452. Typical applications include battery temperature sensing, drive systems, HVAC, air intake/coolants, and electric vehicles (EVs).

Features

• Drop-in upgrade for existing applications
• EMC-tested to GMW3097/IS011452
• Eliminates shielded cables
• Fast time response
• NTC element-level EMI protection
• Range of conformal coatings available
• Retrofit to use existing housing designs

Applications

• Air intake/coolant
• Battery temperature sensing
• Drive systems
• EV/HEV/PHEV markets
• Existing automotive - upgrade
• HVAC

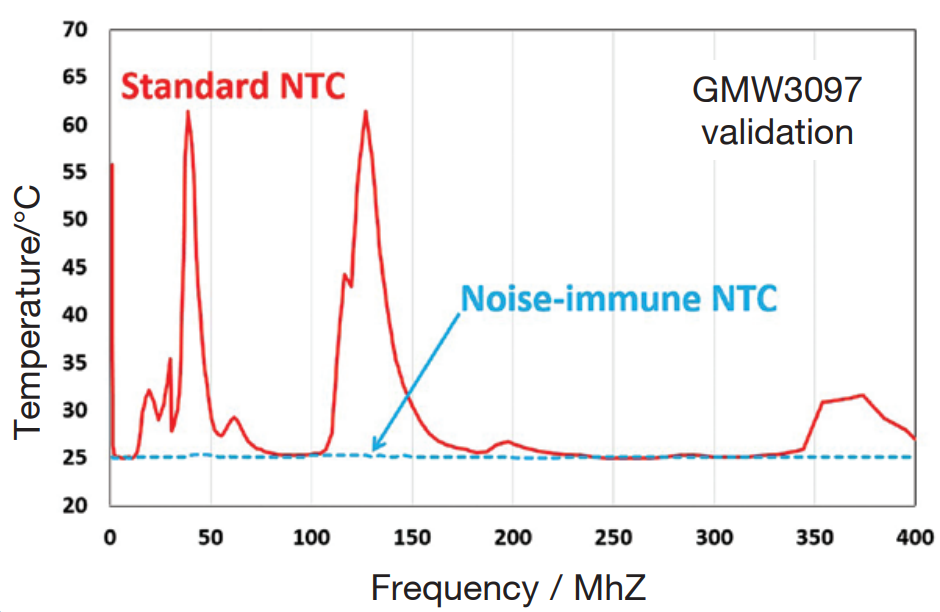

NKI Thermistor Performance Graph

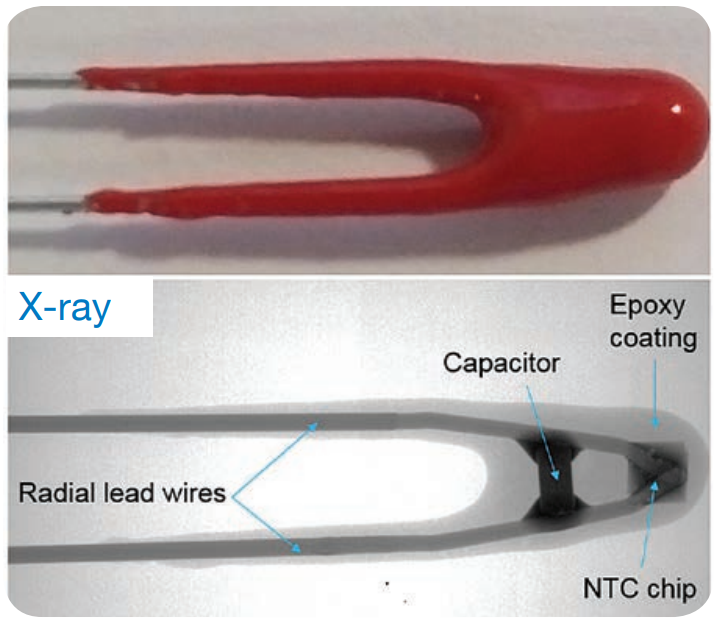

NKI Thermistor X-Ray Image
